ACNV2601-300E

In Stock: 5,091

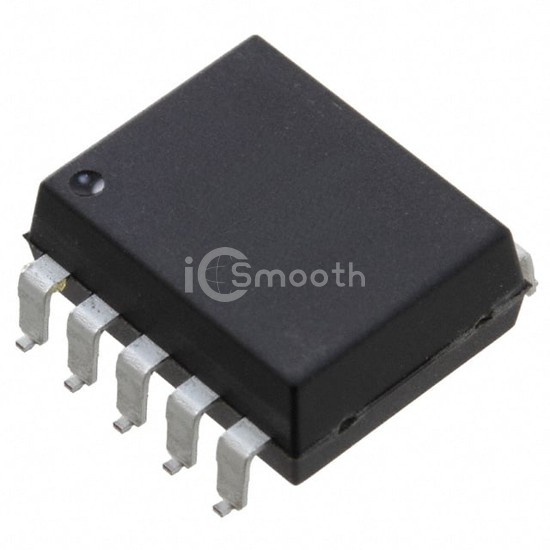

ACNV2601-300E - Broadcom Limited - Optoisolators - Logic Output
REF: ACNV2601-300E Broadcom Limited
ACNV2601-300E

Broadcom Limited

OPTOISO 7.5KV OPEN COLL 10DIP GW

ACNV2601-300E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 7.5KV OPEN COLL 10DIP GW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.5V, package / case 10-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,091

Tiered Pricing USD
1+ $5.7900 —
35+ $3.8131 -34%
105+ $3.4663 -40%
525+ $3.0971 -47%
1,015+ $2.9825 -48%
2,030+ $2.8802 -50% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)20kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel50 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)80ns, 80ns
Rise / Fall Time (Typ)25ns, 10ns
Voltage - Forward (Vf) (Typ)1.64V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case10-SMD, Gull Wing
Supplier Device Package10-DIP Gull Wing
