ACNU-4804-500E

In Stock: 9,977

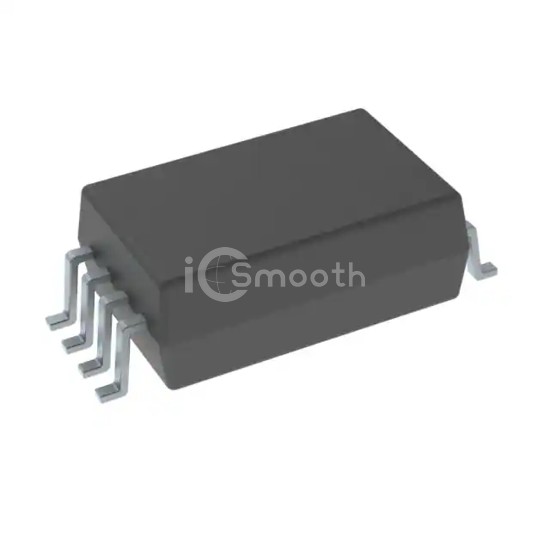

ACNU-4804-500E - Broadcom Limited - Isolators - Gate Drivers
REF: ACNU-4804-500E Broadcom Limited
ACNU-4804-500E

Broadcom Limited

GATE DRIVE OPTOCOUPLERT/R+LF

ACNU-4804-500E is a Isolators - Gate Drivers manufactured by Broadcom Limited. GATE DRIVE OPTOCOUPLERT/R+LF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.5V, package / case 0605 (1613 Metric).

Datasheet Request a Quote

In Stock: 9,977

Specifications

18 parameters
Product StatusActive
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Propagation Delay tpLH / tpHL (Max)120ns, 150ns
Pulse Width Distortion (Max)90ns
Rise / Fall Time (Typ)6ns, 6ns
Current - Output High, Low125mA, 125mA
Current - Peak Output-
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply4.5V ~ 30V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case0605 (1613 Metric)
Supplier Device Package8-SSO
Approval AgencyCSA, UL
