Name: ACNU-4803-000E
Brand: Broadcom Limited
SKU: ACNU-4803-000E
Price: 3.84 USD
Availability: InStock

REF: ACNU-4803-000E Broadcom Limited

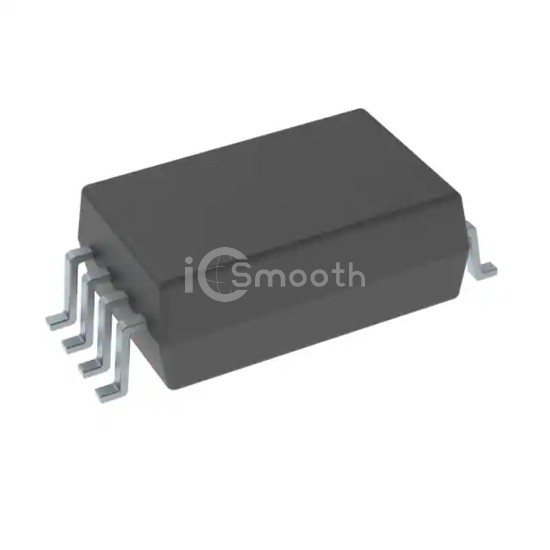

ACNU-4803-000E

Broadcom Limited

GATE DRIVE OPTOCOUPLERLF

ACNU-4803-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. GATE DRIVE OPTOCOUPLERLF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SOIC (0.378", 9.60mm Width).

Datasheet Request a Quote

In Stock: 5,230

Tiered Pricing USD

1+ $3.8400 —

80+ $2.3004 -40%

160+ $2.1706 -43%

560+ $1.9843 -48%

1,040+ $1.9109 -50%

2,000+ $1.9013 -50% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Propagation Delay tpLH / tpHL (Max)	120ns, 150ns
Pulse Width Distortion (Max)	90ns
Rise / Fall Time (Typ)	6ns, 6ns
Current - Output High, Low	125mA, 125mA

Current - Peak Output	-
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20 mA
Voltage - Output Supply	4.5V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.378", 9.60mm Width)
Supplier Device Package	8-SO Stretched
Approval Agency	CSA, UL
