Name: ACNU-3430-000E
Brand: Broadcom Limited
SKU: ACNU-3430-000E
Price: 6.16 USD
Availability: InStock

REF: ACNU-3430-000E Broadcom Limited

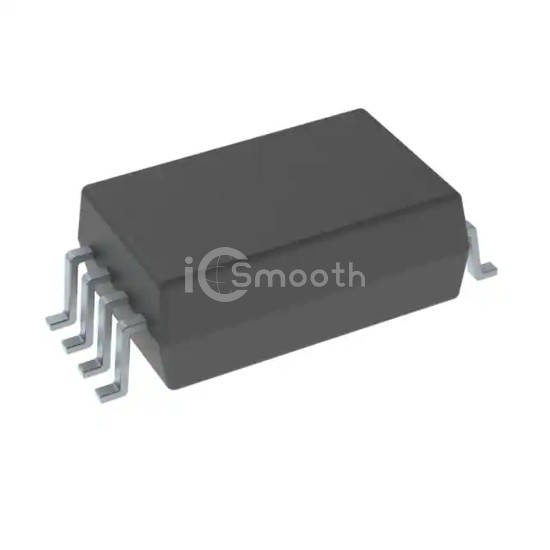

ACNU-3430-000E

Broadcom Limited

OPTOISO 5KV 1CH GATE DRIVER 8SSO

ACNU-3430-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 5KV 1CH GATE DRIVER 8SSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 110°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.378", 9.60mm Width).

Datasheet Request a Quote

In Stock: 9,452

Tiered Pricing USD

1+ $6.1600 —

80+ $3.7954 -38%

160+ $3.5967 -42%

560+ $3.3114 -46%

1,040+ $3.1992 -48%

2,000+ $3.0976 -50% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs
Propagation Delay tpLH / tpHL (Max)	150ns, 150ns
Pulse Width Distortion (Max)	80ns
Rise / Fall Time (Typ)	20ns, 10ns
Current - Output High, Low	4A, 4A

Current - Peak Output	5A
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.378", 9.60mm Width)
Supplier Device Package	8-SSO
Approval Agency	CSA, IEC/EN/DIN, UR
