Name: ACNU-250L-000E
Brand: Broadcom Limited
SKU: ACNU-250L-000E
Price: 4.52 USD
Availability: InStock

REF: ACNU-250L-000E Broadcom Limited

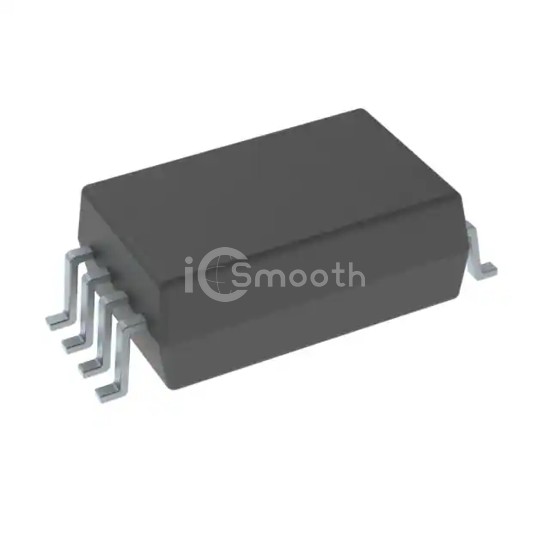

ACNU-250L-000E

Broadcom Limited

11MM OPTOCOUPLER (1MBD)

ACNU-250L-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. 11MM OPTOCOUPLER (1MBD). Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.5V, package / case 8-SOIC (0.378", 9.60mm Width).

Datasheet Request a Quote

In Stock: 2,123

Tiered Pricing USD

1+ $4.5200 —

80+ $2.7063 -40%

160+ $2.5537 -44%

560+ $2.3344 -48%

1,040+ $2.2481 -50%

2,000+ $2.1700 -52% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	23% @ 12mA
Current Transfer Ratio (Max)	53% @ 12mA
Turn On / Turn Off Time (Typ)	700ns, 400ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	24V
Current - Output / Channel	12mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.378", 9.60mm Width)
Supplier Device Package	8-SO Stretched
