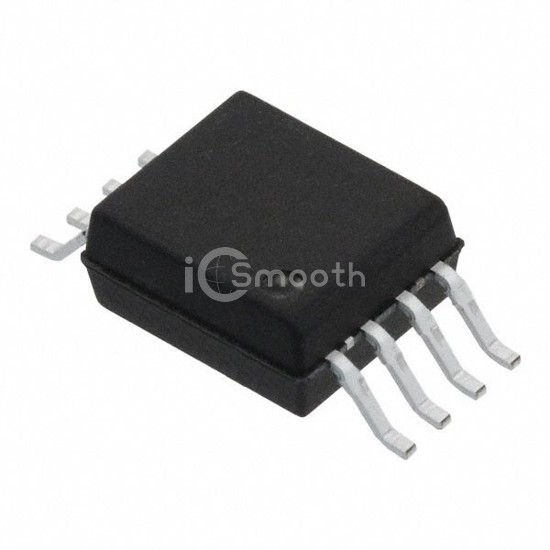

ACNT-H87B-000E

Broadcom Limited

IC OPAMP ISOLATION 1 CIRC 8SO

ACNT-H87B-000E is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Broadcom Limited. IC OPAMP ISOLATION 1 CIRC 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, package / case 8-SOIC (0.535", 13.60mm Width), current - supply 230mA.

Datasheet Request a Quote

In Stock: 5,538

Specifications

17 parameters

Product Status	Active
Amplifier Type	Isolation
Number of Circuits	1
Output Type	Differential
Slew Rate	-
Gain Bandwidth Product	-
-3db Bandwidth	100 kHz
Current - Input Bias	1.5 nA
Voltage - Input Offset	9.9 mV

Current - Supply	230mA
Current - Output / Channel	30 mA
Voltage - Supply Span (Min)	3 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
