Name: ACNT-H61LC-000E
Brand: Broadcom Limited
SKU: ACNT-H61LC-000E
Price: 7.99 USD
Availability: InStock

REF: ACNT-H61LC-000E Broadcom Limited

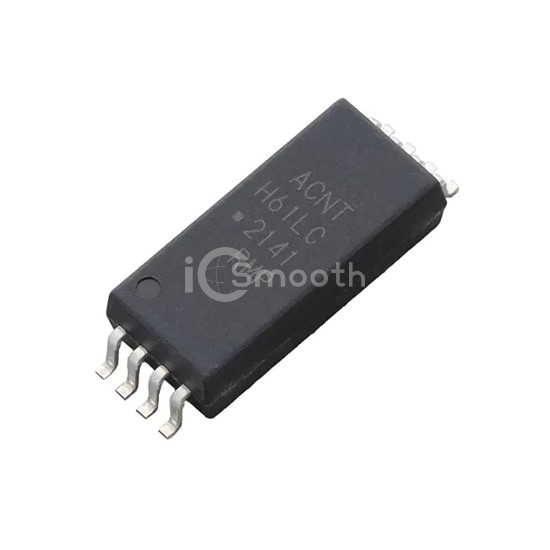

ACNT-H61LC-000E

Broadcom Limited

15MM CTI600V OPTOCOUPLER (10MBD)

ACNT-H61LC-000E is a Optoisolators - Logic Output manufactured by Broadcom Limited. 15MM CTI600V OPTOCOUPLER (10MBD). Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 5.5V, package / case 8-SOIC (0.535", 13.60mm Width).

Datasheet Request a Quote

In Stock: 9,473

Tiered Pricing USD

1+ $7.9900 —

80+ $5.0309 -37%

160+ $4.7838 -40%

560+ $4.4293 -45%

1,040+ $4.2900 -46%

2,000+ $4.1638 -48% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Rise / Fall Time (Typ)	10ns, 10ns
Voltage - Forward (Vf) (Typ)	1.38V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
