Name: ACNT-H61L-500E
Brand: Broadcom Limited
SKU: ACNT-H61L-500E
Price: 6.22 USD
Availability: InStock

REF: ACNT-H61L-500E Broadcom Limited

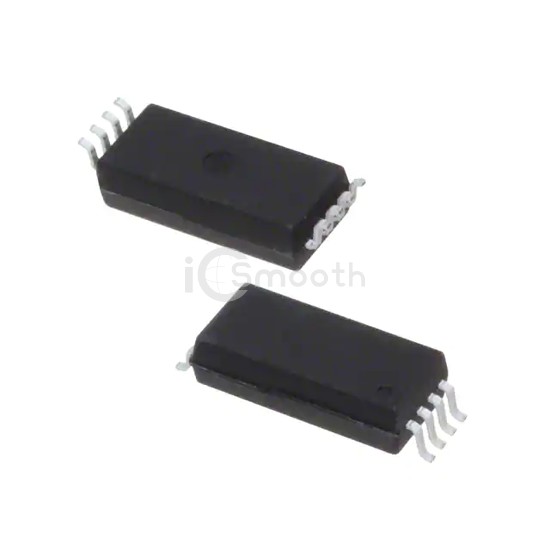

ACNT-H61L-500E

Broadcom Limited

OPTOISO 7.5KV PUSH PULL 8SO

ACNT-H61L-500E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 7.5KV PUSH PULL 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.535", 13.60mm Width).

Datasheet Request a Quote

In Stock: 1,739

Tiered Pricing USD

1+ $6.2200 —

10+ $4.6710 -25%

100+ $3.7625 -40%

500+ $3.4364 -45% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	-
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
