Name: ACNT-H511C-000E
Brand: Broadcom Limited
SKU: ACNT-H511C-000E
Price: 6.96 USD
Availability: InStock

REF: ACNT-H511C-000E Broadcom Limited

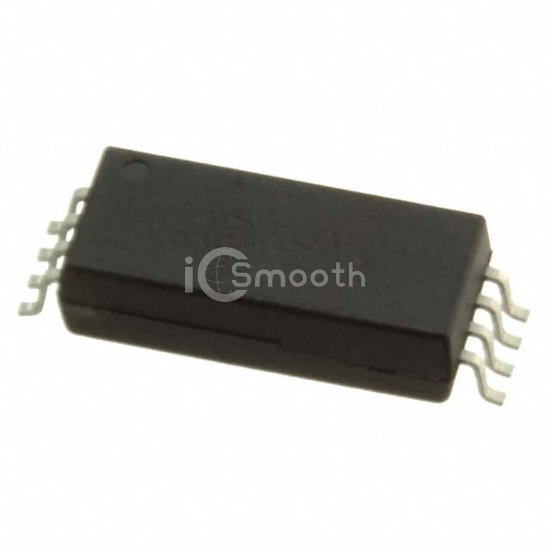

ACNT-H511C-000E

Broadcom Limited

15MM CTI600V OPTOCOUPLER (1MBD)

ACNT-H511C-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. 15MM CTI600V OPTOCOUPLER (1MBD). Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.535", 13.60mm Width).

Request a Quote

In Stock: 1,447

Tiered Pricing USD

1+ $6.9600 —

80+ $4.3286 -38%

160+ $4.1086 -41%

560+ $3.7929 -46%

1,040+ $3.6687 -47%

2,000+ $3.5563 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	7500Vrms
Current Transfer Ratio (Min)	31% @ 12mA
Current Transfer Ratio (Max)	80% @ 12mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	24V
Current - Output / Channel	12mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
