Name: ACNT-H50L-500E
Brand: Broadcom Limited
SKU: ACNT-H50L-500E
Price: 5.13 USD
Availability: InStock

REF: ACNT-H50L-500E Broadcom Limited

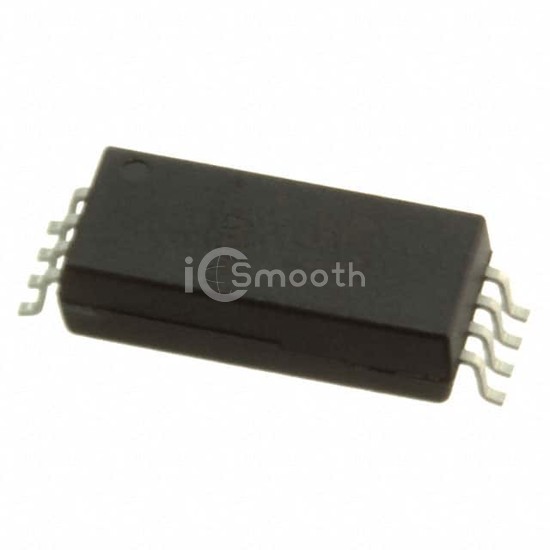

ACNT-H50L-500E

Broadcom Limited

OPTOISO 7.5KV TRANSISTOR 8SO

ACNT-H50L-500E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 7.5KV TRANSISTOR 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.535", 13.60mm Width).

Datasheet Request a Quote

In Stock: 7,013

Tiered Pricing USD

1+ $5.1300 —

10+ $3.8230 -25%

100+ $3.0513 -41%

500+ $2.7203 -47% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	7500Vrms
Current Transfer Ratio (Min)	31% @ 12mA
Current Transfer Ratio (Max)	80% @ 12mA
Turn On / Turn Off Time (Typ)	800ns, 1µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	24V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
