Name: ACNT-H313-000E
Brand: Broadcom Limited
SKU: ACNT-H313-000E
Price: 7.73 USD
Availability: InStock

REF: ACNT-H313-000E Broadcom Limited

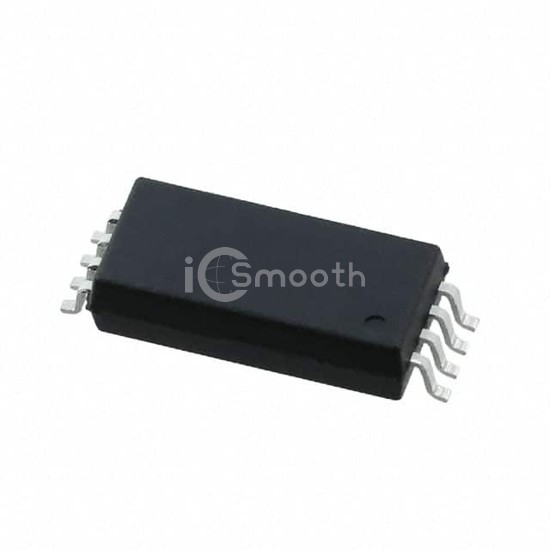

ACNT-H313-000E

Broadcom Limited

OPTOISO 7.5KV 1CH GATE DRVR 8SO

ACNT-H313-000E is a Isolators - Gate Drivers manufactured by Broadcom Limited. OPTOISO 7.5KV 1CH GATE DRVR 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SOIC (0.543", 13.80mm Width).

Datasheet Request a Quote

In Stock: 2,692

Tiered Pricing USD

1+ $7.7300 —

80+ $4.8561 -37%

160+ $4.6157 -40%

560+ $4.2707 -45%

1,040+ $4.1351 -47%

2,000+ $4.0123 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Pulse Width Distortion (Max)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A

Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25 mA
Voltage - Output Supply	15V ~ 30V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.543", 13.80mm Width)
Supplier Device Package	8-SO
Approval Agency	CSA, IEC/EN/DIN, UR
