Name: ACML-7420-000E
Brand: Broadcom Limited
SKU: ACML-7420-000E
Price: 9.59 USD
Availability: InStock

REF: ACML-7420-000E Broadcom Limited

ACML-7420-000E

Broadcom Limited

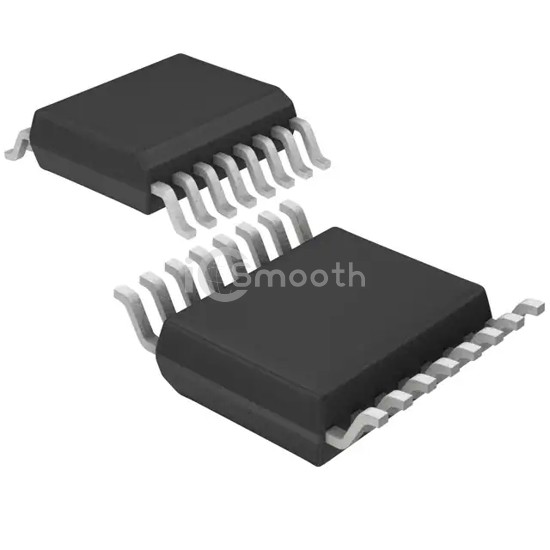

DGTL ISO 5600VRMS 4CH GP 16SOIC

ACML-7420-000E is a Digital Isolators manufactured by Broadcom Limited. DGTL ISO 5600VRMS 4CH GP 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 3.6V, 4.5V ~ 5.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 8,937

Tiered Pricing USD

1+ $9.5900 —

10+ $7.4720 -22%

45+ $6.6680 -30%

135+ $6.2618 -35%

270+ $6.0629 -37%

540+ $5.8992 -38%

1,035+ $5.7721 -40% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	2/2
Channel Type	Unidirectional
Voltage - Isolation	5600Vrms
Common Mode Transient Immunity (Min)	25kV/µs

Data Rate	100MBd
Propagation Delay tpLH / tpHL (Max)	32ns, 32ns
Pulse Width Distortion (Max)	2ns
Rise / Fall Time (Typ)	3ns, 3ns
Voltage - Supply	3V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
