ACFL-6212T-500E

In Stock: 1,354

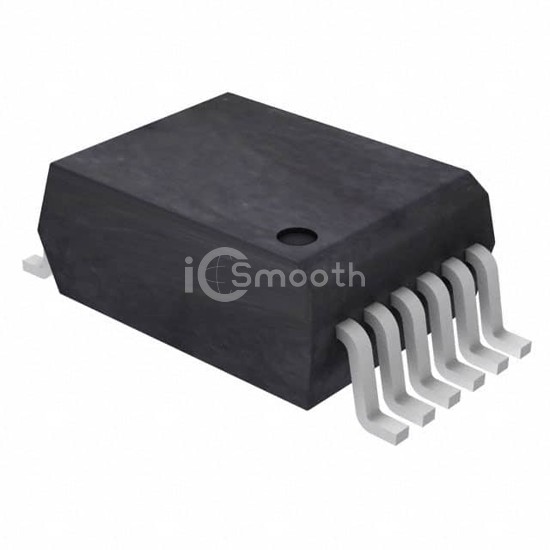

ACFL-6212T-500E - Broadcom Limited - Optoisolators - Logic Output
REF: ACFL-6212T-500E Broadcom Limited
ACFL-6212T-500E

Broadcom Limited

OPTOISO 5KV 2CH PSH PULL SO12

ACFL-6212T-500E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV 2CH PSH PULL SO12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 12-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,354

Specifications

18 parameters
Product StatusActive
Number of Channels2
Inputs - Side 1/Side 21/1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)15kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel10 mA
Data Rate15MBd
Propagation Delay tpLH / tpHL (Max)100ns, 100ns
Rise / Fall Time (Typ)10ns, 10ns
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)20mA
Voltage - Supply3V ~ 5.5V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case12-BSOP (0.295", 7.50mm Width)
Supplier Device Package12-SO
