Name: ACFL-6211T-560E
Brand: Broadcom Limited
SKU: ACFL-6211T-560E
Price: 4.10 USD
Availability: InStock

REF: ACFL-6211T-560E Broadcom Limited

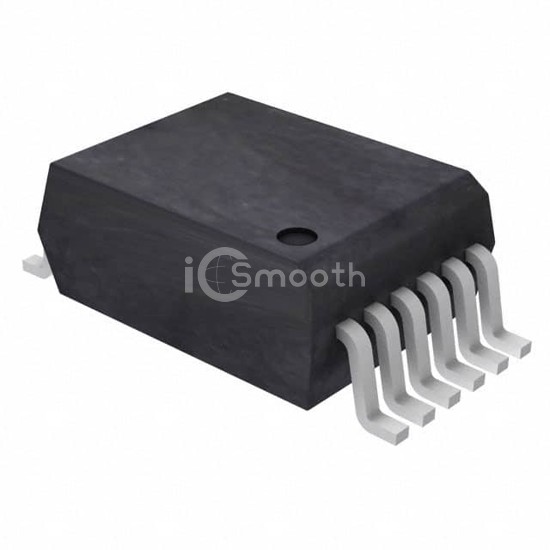

ACFL-6211T-560E

Broadcom Limited

OPTOISO 5KV 2CH PSH PULL SO12

ACFL-6211T-560E is a Optoisolators - Logic Output manufactured by Broadcom Limited. OPTOISO 5KV 2CH PSH PULL SO12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 5.5V, package / case 12-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,192

Tiered Pricing USD

1,000+ $4.0967 —

2,000+ $3.9670 -3% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	35ns, 35ns
Rise / Fall Time (Typ)	10ns, 10ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-BSOP (0.295", 7.50mm Width)
Supplier Device Package	12-SO
