Name: ACFL-5212T-500E
Brand: Broadcom Limited
SKU: ACFL-5212T-500E
Price: 4.08 USD
Availability: InStock

REF: ACFL-5212T-500E Broadcom Limited

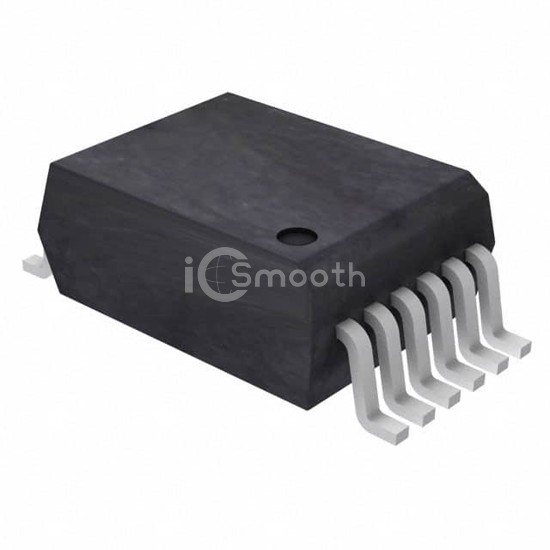

ACFL-5212T-500E

Broadcom Limited

OPTOISO 5KV 2CH TRANS

ACFL-5212T-500E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV 2CH TRANS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.5V, package / case 12-BSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 7,783

Tiered Pricing USD

1+ $4.0800 —

10+ $3.0100 -26%

100+ $2.3762 -42%

500+ $2.0986 -49% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	32% @ 10mA
Current Transfer Ratio (Max)	100% @ 10mA
Turn On / Turn Off Time (Typ)	20µs, 20µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-BSOP (0.295", 7.50mm Width)
Supplier Device Package	12-SO
