Name: ACFL-5211T-000E
Brand: Broadcom Limited
SKU: ACFL-5211T-000E
Price: 5.31 USD
Availability: InStock

REF: ACFL-5211T-000E Broadcom Limited

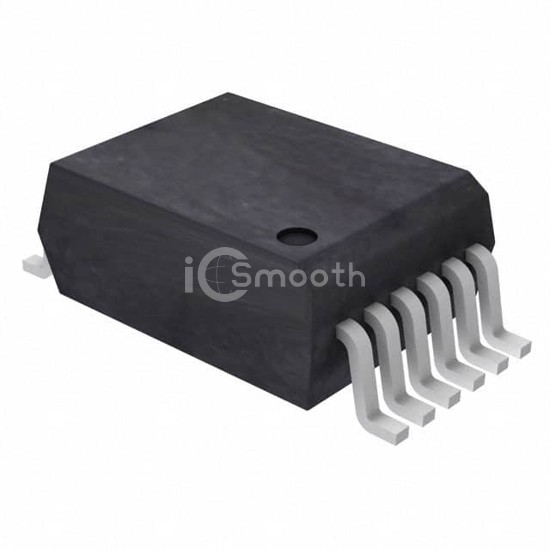

ACFL-5211T-000E

Broadcom Limited

OPTOISO 5KV 2CH TRANS

ACFL-5211T-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 5KV 2CH TRANS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 1.55V, package / case 12-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,278

Tiered Pricing USD

1+ $5.3100 —

80+ $3.2241 -39%

160+ $3.0492 -43%

560+ $2.7978 -47%

1,040+ $2.6989 -49%

2,000+ $2.6093 -51% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	32% @ 10mA
Current Transfer Ratio (Max)	100% @ 10mA
Turn On / Turn Off Time (Typ)	150ns, 500ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	12-SOIC (0.295", 7.50mm Width)
Supplier Device Package	12-SO
