8302401XA

In Stock: 7,975
8302401XA - Broadcom Limited - Optoisolators - Transistor, Photovoltaic Output
REF: 8302401XA Broadcom Limited
8302401XA

Broadcom Limited

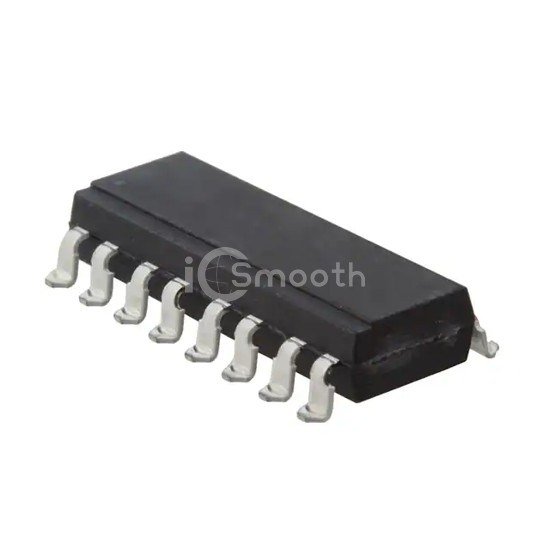

OPTOISO 1.5KV 4CH DARL 16-SMD GW

8302401XA is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 1.5KV 4CH DARL 16-SMD GW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - forward (vf) (typ) 1.4V, package / case 16-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,975

Tiered Pricing USD
1+ $131.0800 —
10+ $112.5550 -14% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels4
Voltage - Isolation1500VDC
Current Transfer Ratio (Min)200% @ 5mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)2µs, 8µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)20V
Current - Output / Channel40mA
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)10 mA
Vce Saturation (Max)110mV
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SMD, Gull Wing
Supplier Device Package16-SMD Gull Wing
