Name: 4N45#500
Brand: Broadcom Limited
SKU: 4N45#500
Availability: InStock

REF: 4N45#500 Broadcom Limited

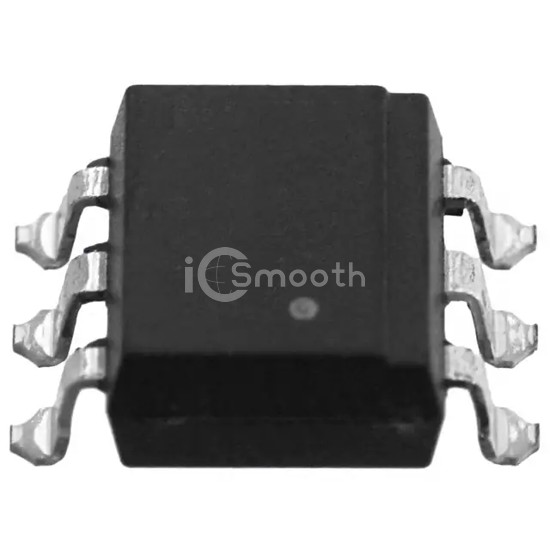

4N45#500

OPTOISO 3.75KV DARL W/BASE 6SMD

4N45#500 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV DARL W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.4V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,871

Specifications

18 parameters

Product Status	Discontinued at Digi-Key
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 10mA
Current Transfer Ratio (Max)	1000% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 150µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	7V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
