Name: 4N45-000E
Brand: Broadcom Limited
SKU: 4N45-000E
Price: 2.62 USD
Availability: InStock

REF: 4N45-000E Broadcom Limited

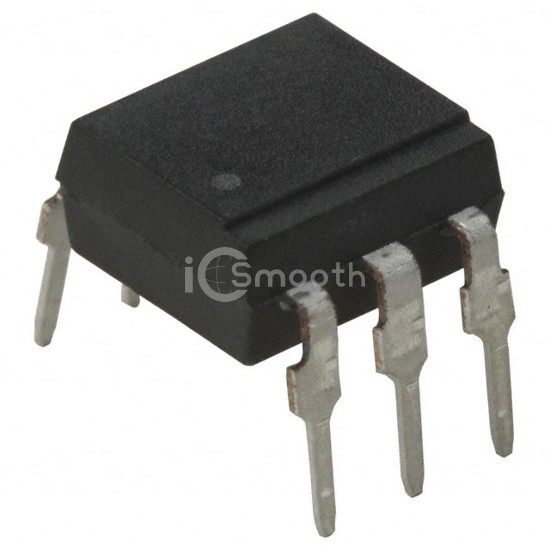

4N45-000E

OPTOISO 3.75KV DARL W/BASE 6DIP

4N45-000E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 3.75KV DARL W/BASE 6DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - forward (vf) (typ) 1.4V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 5,501

Tiered Pricing USD

1+ $2.6200 —

50+ $1.5884 -39%

100+ $1.4842 -43%

500+ $1.2990 -50%

1,000+ $1.2387 -53%

2,000+ $1.1877 -55%

5,000+ $1.1850 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 10mA
Current Transfer Ratio (Max)	1000% @ 10mA
Turn On / Turn Off Time (Typ)	5µs, 150µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	7V
Current - Output / Channel	60mA
Voltage - Forward (Vf) (Typ)	1.4V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
