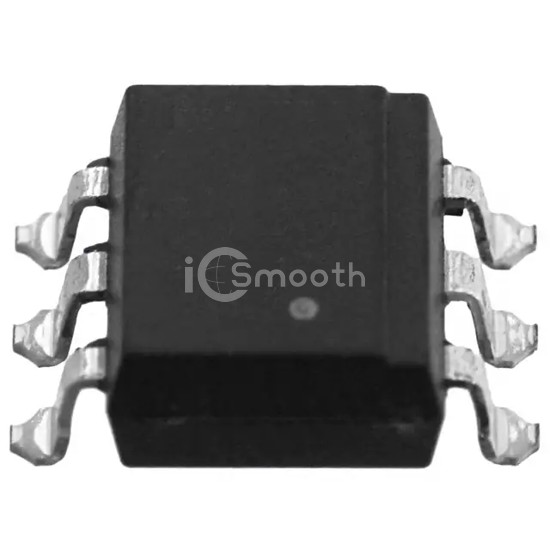

4N25-560E - Broadcom Limited - Optoisolators - Transistor, Photovoltaic Output
REF: 4N25-560E Broadcom Limited
4N25-560E

Broadcom Limited

OPTOISO 2.5KV TRANS W/BASE 6SMD

4N25-560E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 2.5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,194

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)20% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 3µs
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)30V
Current - Output / Channel100mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)500mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
