Name: 4N25-360E
Brand: Broadcom Limited
SKU: 4N25-360E
Price: 0.76 USD
Availability: InStock

REF: 4N25-360E Broadcom Limited

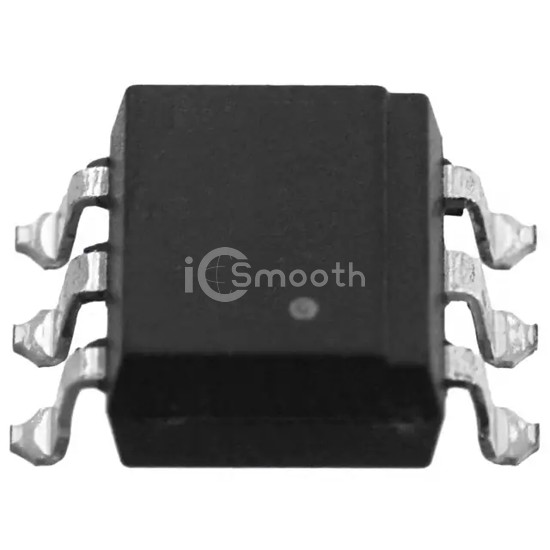

4N25-360E

OPTOISO 2.5KV TRANS W/BASE 6SMD

4N25-360E is a Optoisolators - Transistor, Photovoltaic Output manufactured by Broadcom Limited. OPTOISO 2.5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,998

Tiered Pricing USD

1+ $0.7600 —

65+ $0.4065 -47%

130+ $0.3730 -51%

520+ $0.3201 -58%

1,040+ $0.2994 -61%

2,015+ $0.2825 -63%

5,005+ $0.2632 -65%

10,010+ $0.2511 -67%

25,025+ $0.2380 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	20% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	3µs, 3µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	100mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	80 mA
Vce Saturation (Max)	500mV
Operating Temperature	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
