Name: CDDFN10-0516P
Brand: Bourns Inc.
SKU: CDDFN10-0516P
Price: 0.66 USD
Availability: InStock

REF: CDDFN10-0516P Bourns Inc.

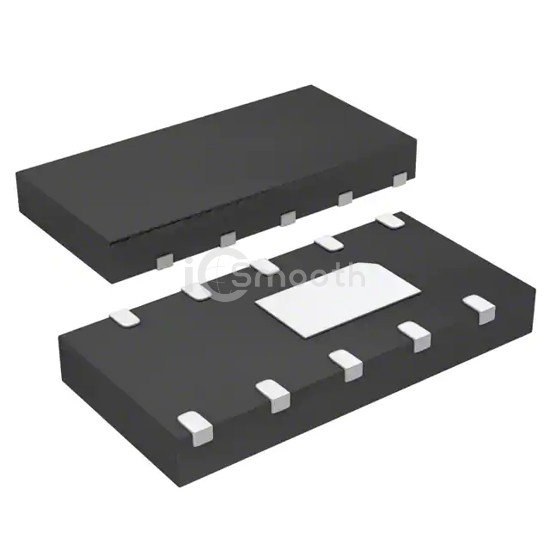

CDDFN10-0516P

TVS DIODE 2.2VWM 3.3VWM 10DFN

CDDFN10-0516P is a TVS - Diodes manufactured by Bourns Inc.. TVS DIODE 2.2VWM 3.3VWM 10DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 10-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 11,781

Tiered Pricing USD

1+ $0.6600 —

10+ $0.5280 -20%

100+ $0.3050 -54%

500+ $0.2710 -59%

1,000+ $0.2525 -62% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	6
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	2.2V (Max), 3.3V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	4.5V, 7.2V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	0.35pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UDFN Exposed Pad
Supplier Device Package	10-DFN (4.1x2)
