BIDNW30N60H3

In Stock: 3,000
BIDNW30N60H3 - Bourns Inc. - Transistors - IGBTs - Single
REF: BIDNW30N60H3 Bourns Inc.

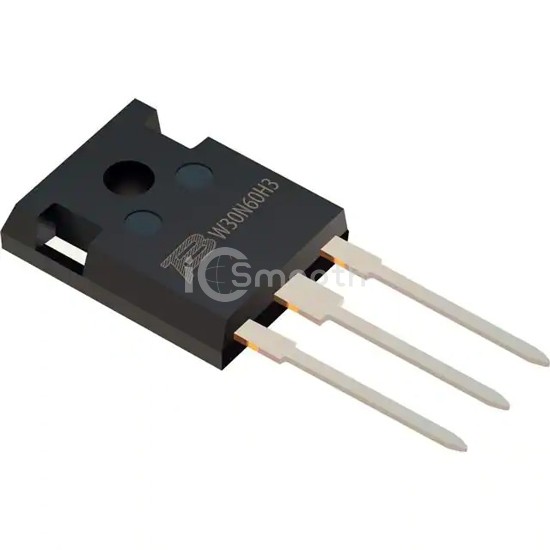

BIDNW30N60H3

Bourns Inc.

IGBT 600V 30A TRENCH TO-247N-3L

BIDNW30N60H3 is a Transistors - IGBTs - Single manufactured by Bourns Inc.. IGBT 600V 30A TRENCH TO-247N-3L. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 3,000

Specifications

17 parameters
Product StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 30A
Power - Max230 W
Switching Energy1.85mJ (on), 450µJ (off)
Input TypeStandard
Gate Charge76 nC
Td (on/off) @ 25°C30ns/67ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)28 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N-3L
