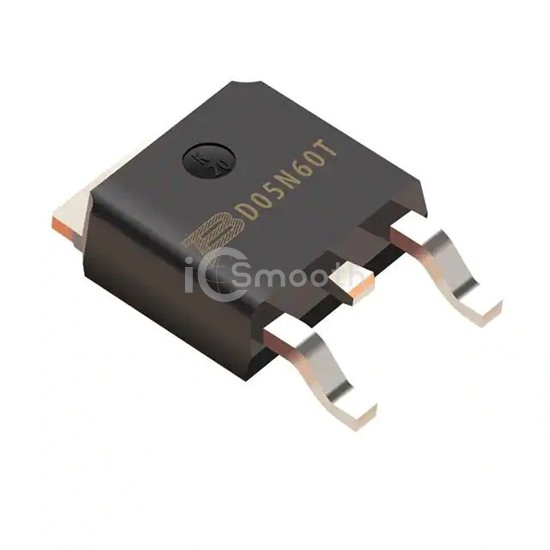

BIDD05N60T

IGBT 600V 5A TRENCH TO-252

BIDD05N60T is a Transistors - IGBTs - Single manufactured by Bourns Inc.. IGBT 600V 5A TRENCH TO-252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.

Datasheet Request a Quote

In Stock: 2,722

Specifications

17 parameters

Product Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	10 A
Current - Collector Pulsed (Icm)	15 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 5A
Power - Max	82 W
Switching Energy	200µJ (on), 70µJ (off)
Input Type	Standard

Gate Charge	18.5 nC
Td (on/off) @ 25°C	7ns/18ns
Test Condition	400V, 5A, 10Ohm, 15V
Reverse Recovery Time (trr)	40 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	TO-252 (DPAK)
