AMS22U5A1BHBRL334

In Stock: 2,341

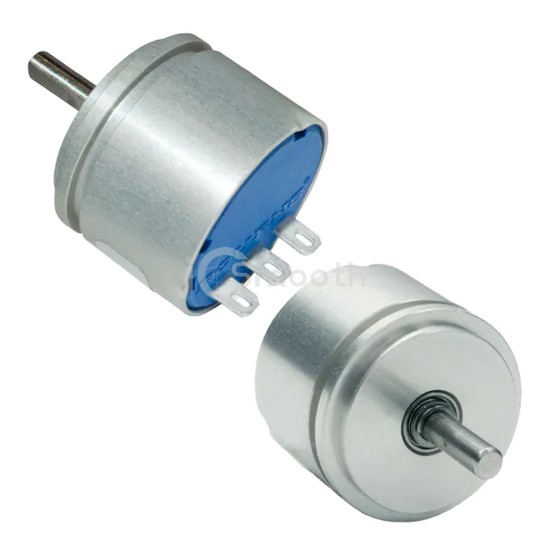

AMS22U5A1BHBRL334 - Bourns Inc. - Position Sensors - Angle, Linear Position Measuring
REF: AMS22U5A1BHBRL334 Bourns Inc.
AMS22U5A1BHBRL334

Bourns Inc.

SENSOR ROTARY 340DEG SOLDER LUG

AMS22U5A1BHBRL334 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 340DEG SOLDER LUG. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Round Shaft.

Datasheet Request a Quote

In Stock: 2,341

Tiered Pricing USD
1+ $62.5300 —
5+ $57.7880 -8%
10+ $56.0230 -10%
25+ $53.9112 -14%
50+ $52.4656 -16%
100+ $51.1392 -18% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical10° ~ 340°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeRound Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-40°C ~ 125°C
Package / CaseModule, Round Shaft
Supplier Device Package-
