AMS22U5A1BHARL307

In Stock: 9,726

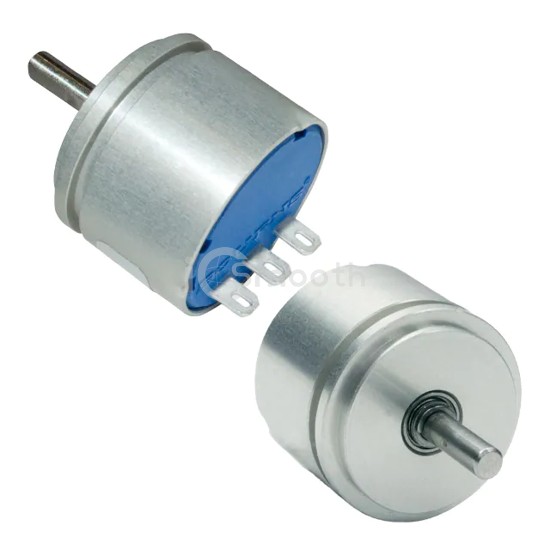

AMS22U5A1BHARL307 - Bourns Inc. - Position Sensors - Angle, Linear Position Measuring
REF: AMS22U5A1BHARL307 Bourns Inc.
AMS22U5A1BHARL307

Bourns Inc.

SENSOR ROTARY 70DEG SOLDER LUG

AMS22U5A1BHARL307 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 70DEG SOLDER LUG. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Round Shaft.

Datasheet Request a Quote

In Stock: 9,726

Tiered Pricing USD
1+ $47.2500 —
5+ $43.5380 -8%
10+ $42.1550 -11%
25+ $40.5008 -14%
50+ $39.3692 -17%
100+ $38.3303 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical10° ~ 70°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeRound Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-40°C ~ 125°C
Package / CaseModule, Round Shaft
Supplier Device Package-
