AMS22S5A1BHBFL334

In Stock: 5,716

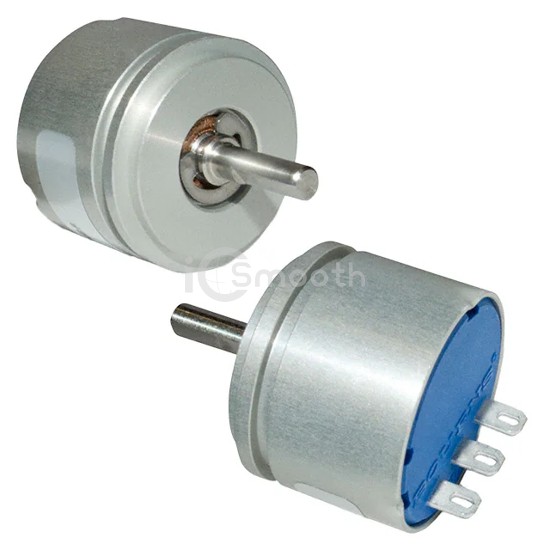

AMS22S5A1BHBFL334 - Bourns Inc. - Position Sensors - Angle, Linear Position Measuring
REF: AMS22S5A1BHBFL334 Bourns Inc.
AMS22S5A1BHBFL334

Bourns Inc.

SENSOR ROTARY 340DEG SOLDER LUG

AMS22S5A1BHBFL334 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 340DEG SOLDER LUG. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Flatted Shaft.

Datasheet Request a Quote

In Stock: 5,716

Tiered Pricing USD
1+ $49.1700 —
5+ $45.3260 -8%
10+ $43.8950 -11%
25+ $42.1824 -14%
50+ $41.0102 -17%
100+ $39.9350 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical10° ~ 340°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeFlatted Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-40°C ~ 125°C
Package / CaseModule, Flatted Shaft
Supplier Device Package-
