AMS22S5A1BHAFL325

In Stock: 1,219

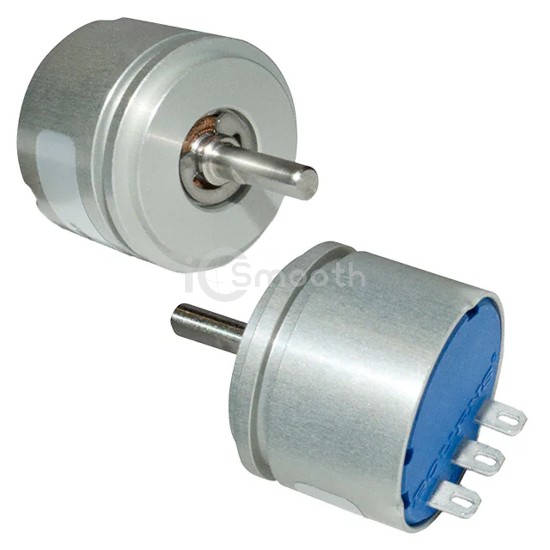

AMS22S5A1BHAFL325 - Bourns Inc. - Position Sensors - Angle, Linear Position Measuring
REF: AMS22S5A1BHAFL325 Bourns Inc.
AMS22S5A1BHAFL325

Bourns Inc.

SENSOR ROTARY 250DEG SOLDER LUG

AMS22S5A1BHAFL325 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 250DEG SOLDER LUG. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Flatted Shaft.

Datasheet Request a Quote

In Stock: 1,219

Tiered Pricing USD
1+ $37.1500 —
5+ $34.1400 -8%
10+ $33.0200 -11%
25+ $31.6800 -15%
50+ $30.7630 -17%
100+ $29.9216 -19% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical10° ~ 250°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeFlatted Shaft
Linearity±0.5%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-40°C ~ 125°C
Package / CaseModule, Flatted Shaft
Supplier Device Package-
