AMS22B5A1CHASL336N

In Stock: 6,740

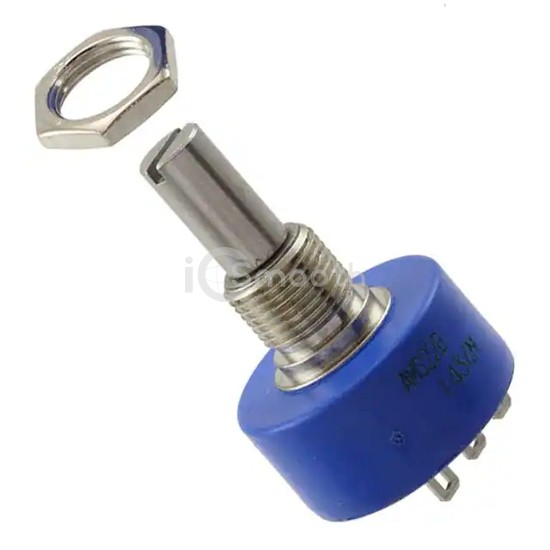

AMS22B5A1CHASL336N - Bourns Inc. - Position Sensors - Angle, Linear Position Measuring
REF: AMS22B5A1CHASL336N Bourns Inc.
AMS22B5A1CHASL336N

Bourns Inc.

SINGLE TURN NON-CONTACT MAGNETIC

AMS22B5A1CHASL336N is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SINGLE TURN NON-CONTACT MAGNETIC. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Round Shaft.

Request a Quote

In Stock: 6,740

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical10° ~ 360°, Continuous
Linear Range-
OutputAnalog Voltage
Output SignalClockwise Increase
Actuator TypeSlotted Shaft
Linearity±0.3%
Resistance-
Resistance Tolerance-
Voltage - Supply5V
Mounting TypePanel Mount
Termination StyleSolder Lug
Operating Temperature-40°C ~ 125°C
Package / CaseModule, Round Shaft
Supplier Device Package-
