Name: AMM20B5A1CLASL380
Brand: Bourns Inc.
SKU: AMM20B5A1CLASL380
Price: 37.54 USD
Availability: InStock

REF: AMM20B5A1CLASL380 Bourns Inc.

AMM20B5A1CLASL380

Bourns Inc.

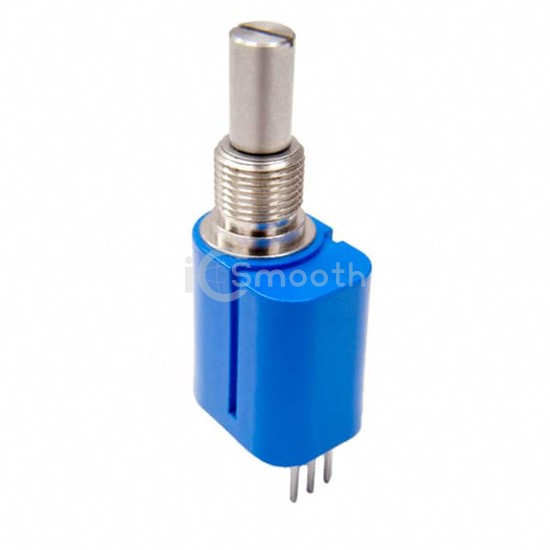

SENSOR ROTARY 3960DEG PC PIN

AMM20B5A1CLASL380 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 3960DEG PC PIN. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 125°C, voltage - supply 5V, package / case Module, Slotted Shaft.

Datasheet Request a Quote

In Stock: 5,264

Tiered Pricing USD

1+ $37.5400 —

5+ $34.5060 -8%

10+ $33.3740 -11%

45+ $31.2322 -17%

90+ $30.3717 -19%

135+ $29.9017 -20% BEST

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
For Measuring	Rotary Position
Technology	Hall Effect
Rotation Angle - Electrical, Mechanical	0° ~ 3600°, 0° ~ 3960°
Linear Range	-
Output	Analog Voltage
Output Signal	Clockwise Increase
Actuator Type	Slotted Shaft
Linearity	±0.3%

Resistance	-
Resistance Tolerance	-
Voltage - Supply	5V
Mounting Type	Panel Mount
Termination Style	PC Pin
Operating Temperature	-40°C ~ 125°C
Package / Case	Module, Slotted Shaft
Supplier Device Package	-
