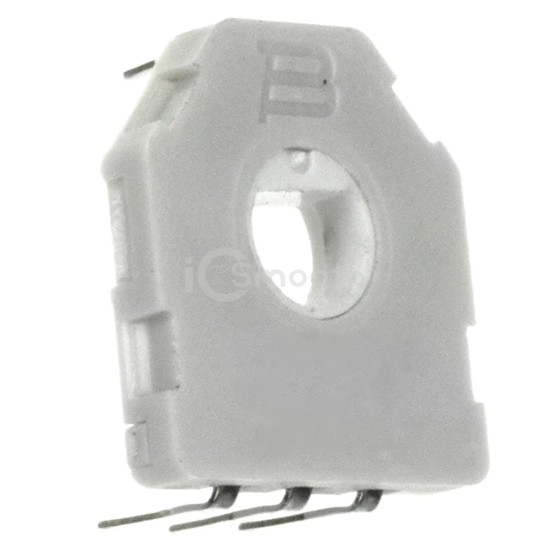

Name: 3382H-1-503
Brand: Bourns Inc.
SKU: 3382H-1-503
Price: 1.23 USD
Availability: InStock

REF: 3382H-1-503 Bourns Inc.

3382H-1-503

SENSOR ROTARY 330DEG PC PIN

3382H-1-503 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR ROTARY 330DEG PC PIN. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 120°C, package / case Module, PC Pins, termination style PC Pin.

Datasheet Request a Quote

In Stock: 4,430

Specifications

17 parameters

Product Status	Active
For Measuring	Rotary Position
Technology	Resistive
Rotation Angle - Electrical, Mechanical	0° ~ 330°, Continuous
Linear Range	-
Output	Resistive
Output Signal	Clockwise Increase
Actuator Type	Hole for Shaft
Linearity	±2%

Resistance	50 kOhms
Resistance Tolerance	±30%
Voltage - Supply	-
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature	-40°C ~ 120°C
Package / Case	Module, PC Pins
Supplier Device Package	-
