Name: 3048L-4-203
Brand: Bourns Inc.
SKU: 3048L-4-203
Price: 32.46 USD
Availability: InStock

REF: 3048L-4-203 Bourns Inc.

3048L-4-203

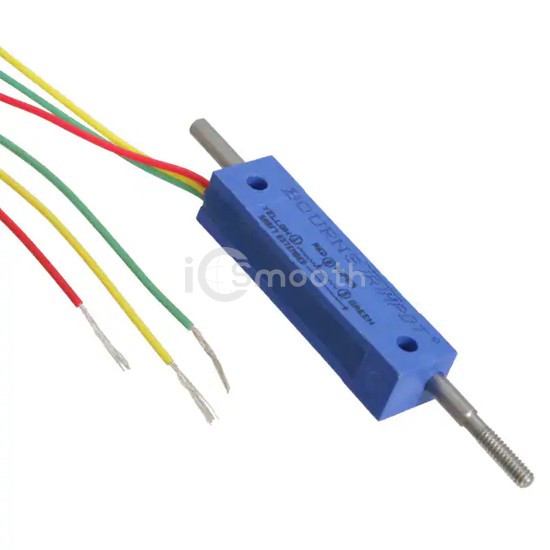

SENSOR LINEAR 10.16MM WIRE LEADS

3048L-4-203 is a Position Sensors - Angle, Linear Position Measuring manufactured by Bourns Inc.. SENSOR LINEAR 10.16MM WIRE LEADS. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, package / case Module, Wire Leads, Threaded, termination style Wire Leads.

Datasheet Request a Quote

In Stock: 3,259

Specifications

17 parameters

Product Status	Active
For Measuring	Linear Position
Technology	Resistive
Rotation Angle - Electrical, Mechanical	-
Linear Range	0 ~ 10.16mm (0 ~ 0.40")
Output	Resistive
Output Signal	-
Actuator Type	Round Shaft
Linearity	±5%

Resistance	20 kOhms
Resistance Tolerance	±20%
Voltage - Supply	-
Mounting Type	Chassis Mount
Termination Style	Wire Leads
Operating Temperature	-55°C ~ 125°C
Package / Case	Module, Wire Leads, Threaded
Supplier Device Package	-
