AT86RF230-ZU

In Stock: 1,325

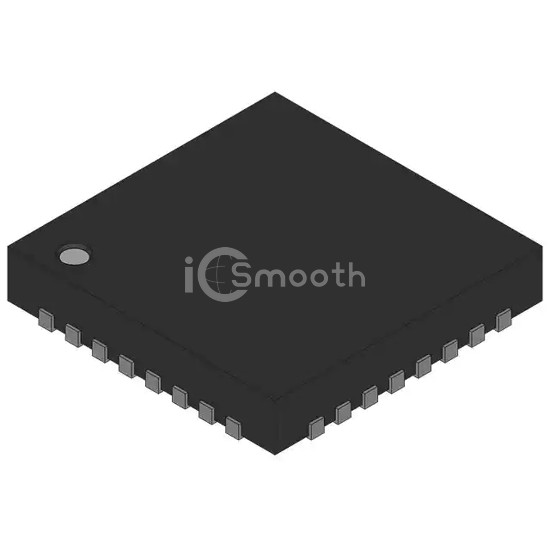

AT86RF230-ZU - Atmel - RF Transceiver ICs
REF: AT86RF230-ZU Atmel
AT86RF230-ZU

Atmel

2.4GHZ TRANSCEIVER FOR ZIGBEE

AT86RF230-ZU is a RF Transceiver ICs manufactured by Atmel. 2.4GHZ TRANSCEIVER FOR ZIGBEE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 3.6V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,325

Specifications

19 parameters
Product StatusObsolete
TypeTxRx + MCU
RF Family/Standard802.15.4, General ISM > 1GHz
Protocol6LoWPAN, WirelessHART™, Zigbee®
ModulationO-QPSK
Frequency2.4GHz
Data Rate (Max)250kbps
Power - Output3dBm
Sensitivity-101dBm
Memory Size128B SRAM
Serial InterfacesSPI
GPIO-
Voltage - Supply1.8V ~ 3.6V
Current - Receiving15.5mA
Current - Transmitting9.5mA ~ 16.5mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case32-VFQFN Exposed Pad
Supplier Device Package32-QFN (5x5)
