Name: REF02AZ
Brand: Analog Devices Inc.
SKU: REF02AZ
Availability: InStock

REF: REF02AZ Analog Devices Inc.

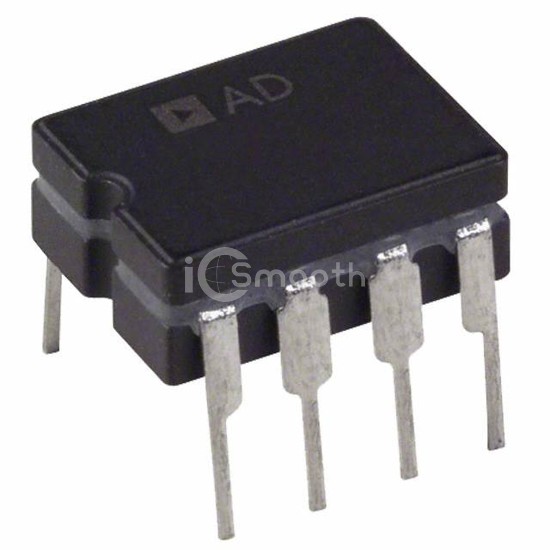

REF02AZ

IC VREF SERIES 0.3% 8CERDIP

REF02AZ is a PMIC - Voltage Reference manufactured by Analog Devices Inc.. IC VREF SERIES 0.3% 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - input 8V ~ 36V, package / case 8-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 8,407

Specifications

17 parameters

Product Status	Active
Reference Type	Series
Output Type	Fixed
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Current - Output	10 mA
Tolerance	±0.3%
Temperature Coefficient	8.5ppm/°C
Noise - 0.1Hz to 10Hz	15µVp-p

Noise - 10Hz to 10kHz	-
Voltage - Input	8V ~ 36V
Current - Supply	1.4mA
Current - Cathode	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	8-CDIP (0.300", 7.62mm)
Supplier Device Package	8-CERDIP
