Name: MAT01GH
Brand: Analog Devices Inc.
SKU: MAT01GH
Price: 17.89 USD
Availability: InStock

REF: MAT01GH Analog Devices Inc.

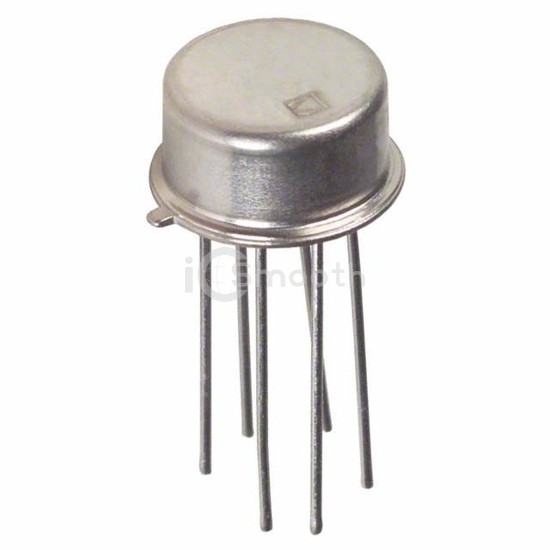

MAT01GH

TRANS 2NPN 45V 0.025A TO78-6

MAT01GH is a Transistors - Bipolar (BJT) - Arrays manufactured by Analog Devices Inc.. TRANS 2NPN 45V 0.025A TO78-6. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-78-6 Metal Can, current - collector (ic) (max) 25mA.

Datasheet Request a Quote

In Stock: 48

Specifications

13 parameters

Product Status	Active
Transistor Type	2 NPN (Dual) Matched Pair
Current - Collector (Ic) (Max)	25mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	800mV @ 1mA, 10mA
Current - Collector Cutoff (Max)	400nA
DC Current Gain (hFE) (Min) @ Ic, Vce	-

Power - Max	500mW
Frequency - Transition	450MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-78-6 Metal Can
Supplier Device Package	TO-78-6
