LTM2894HY#PBF

In Stock: 5

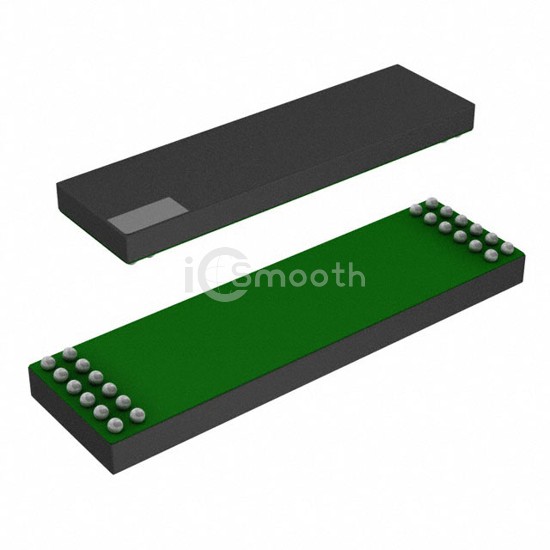

LTM2894HY#PBF - Analog Devices Inc. - Digital Isolators
REF: LTM2894HY#PBF Analog Devices Inc.
LTM2894HY#PBF

Analog Devices Inc.

DGTL ISOL 7500VRMS 2CH USB 24BGA

LTM2894HY#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 7500VRMS 2CH USB 24BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.4V ~ 36V, package / case 24-BGA.

Datasheet Request a Quote

In Stock: 5

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
TypeUSB
Isolated PowerNo
Number of Channels1
Inputs - Side 1/Side 21/1
Channel TypeBidirectional
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)50kV/µs
Data Rate12Mbps
Propagation Delay tpLH / tpHL (Max)115ns, 115ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)20ns, 20ns (Max)
Voltage - Supply4.4V ~ 36V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case24-BGA
Supplier Device Package24-BGA (22x6.25)
