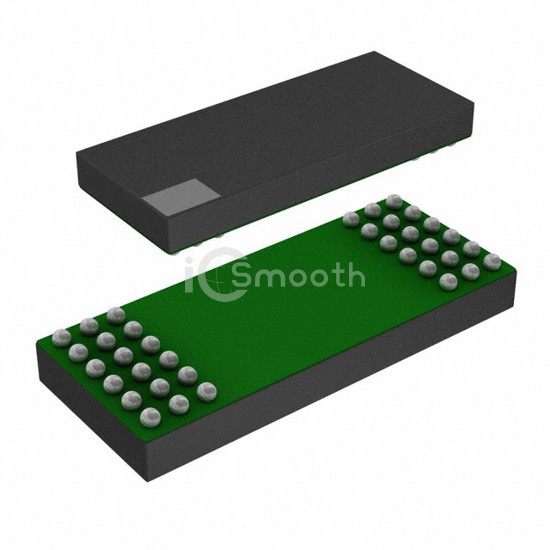

Name: LTM2810HY-S#PBF
Brand: Analog Devices Inc.
SKU: LTM2810HY-S#PBF
Price: 24.17 USD
Availability: InStock

REF: LTM2810HY-S#PBF Analog Devices Inc.

LTM2810HY-S#PBF

Analog Devices Inc.

DGTL ISOL 7500VRMS 6CH SPI 36BGA

LTM2810HY-S#PBF is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISOL 7500VRMS 6CH SPI 36BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.62V ~ 5.5V, package / case 36-BGA Module.

Datasheet Request a Quote

In Stock: 8,477

Tiered Pricing USD

1+ $24.1700 —

10+ $17.3760 -28%

25+ $15.6056 -35%

120+ $14.6500 -39% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	SPI
Isolated Power	Yes
Number of Channels	6
Inputs - Side 1/Side 2	3/3
Channel Type	Unidirectional
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	50kV/µs

Data Rate	10MHz
Propagation Delay tpLH / tpHL (Max)	100ns, 100ns
Pulse Width Distortion (Max)	50ns
Rise / Fall Time (Typ)	350ns, 250ns (Max)
Voltage - Supply	1.62V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	36-BGA Module
Supplier Device Package	36-BGA (22x6.25)
