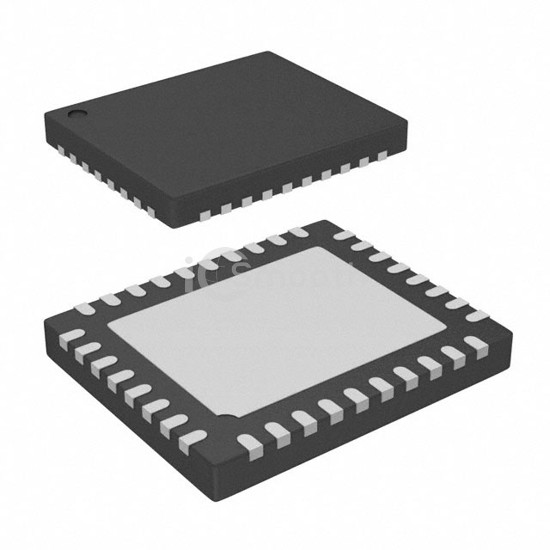

LTC7841IUHE#PBF

In Stock: 8,001
LTC7841IUHE#PBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Controllers
REF: LTC7841IUHE#PBF Analog Devices Inc.
LTC7841IUHE#PBF

Analog Devices Inc.

POLYPHSYNC BOOST CNTR

LTC7841IUHE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. POLYPHSYNC BOOST CNTR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply (vcc/vdd) 4.5V ~ 60V, package / case 36-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,001

Tiered Pricing USD
1+ $12.8600 —
10+ $8.8720 -31%
61+ $7.0297 -45%
122+ $6.5207 -49%
305+ $6.4125 -50% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTransistor Driver
FunctionStep-Up
Output ConfigurationPositive
TopologyBoost
Number of Outputs1
Output Phases12
Voltage - Supply (Vcc/Vdd)4.5V ~ 60V
Frequency - Switching75kHz ~ 850kHz
Duty Cycle (Max)96%
Synchronous RectifierYes
Clock SyncYes
Serial InterfacesI²C, PMBus, SMBus
Control FeaturesCurrent Limit, Power Good
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case36-WFQFN Exposed Pad
Supplier Device Package36-QFN (5x6)
