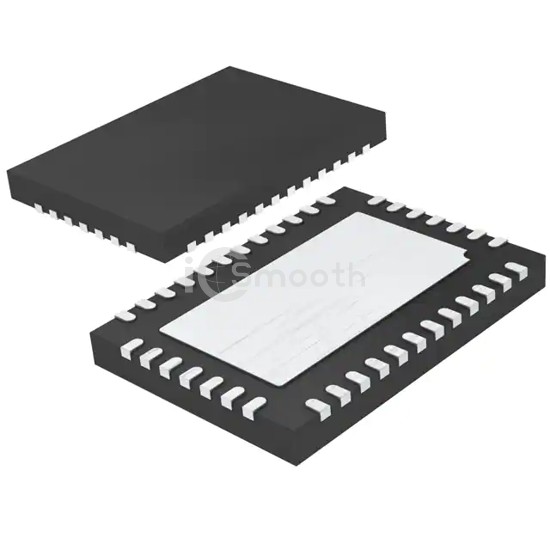

Name: LTC7815IUHF#PBF
Brand: Analog Devices Inc.
SKU: LTC7815IUHF#PBF
Price: 13.16 USD
Availability: InStock

REF: LTC7815IUHF#PBF Analog Devices Inc.

LTC7815IUHF#PBF

Analog Devices Inc.

LOW IQ, 2.25MHZ, TRIPLE OUTPUT,

LTC7815IUHF#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. LOW IQ, 2.25MHZ, TRIPLE OUTPUT,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 38V, package / case 38-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 216

Tiered Pricing USD

1+ $13.1600 —

10+ $9.0930 -31%

52+ $7.3471 -44%

104+ $6.8062 -48%

260+ $6.6125 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck, Buck, Boost
Number of Outputs	3
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 38V
Frequency - Switching	320kHz ~ 2.25MHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	38-WFQFN Exposed Pad
Supplier Device Package	38-QFN (5x7)
