Name: LTC7811IUJ#PBF
Brand: Analog Devices Inc.
SKU: LTC7811IUJ#PBF
Price: 9.91 USD
Availability: InStock

REF: LTC7811IUJ#PBF Analog Devices Inc.

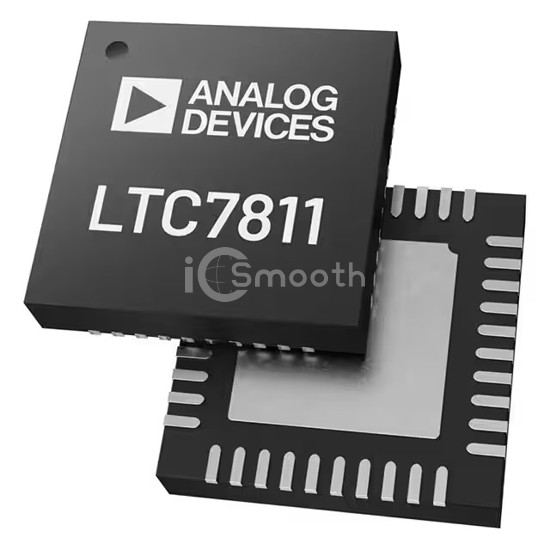

LTC7811IUJ#PBF

Analog Devices Inc.

LOW IQ TRIPLE BUCK-BOOST CTL

LTC7811IUJ#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. LOW IQ TRIPLE BUCK-BOOST CTL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 1V ~ 40V, package / case 40-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,555

Tiered Pricing USD

1+ $9.9100 —

10+ $6.7240 -32%

61+ $5.2523 -47%

122+ $4.8457 -51%

305+ $4.5250 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Number of Outputs	3
Output Phases	2
Voltage - Supply (Vcc/Vdd)	1V ~ 40V
Frequency - Switching	100kHz ~ 3MHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	40-WFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
