Name: LTC7810HLXE#PBF
Brand: Analog Devices Inc.
SKU: LTC7810HLXE#PBF
Price: 17.11 USD
Availability: InStock

REF: LTC7810HLXE#PBF Analog Devices Inc.

LTC7810HLXE#PBF

Analog Devices Inc.

150V LOW IQ, DUAL, 2-PHASE SYNCH

LTC7810HLXE#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. 150V LOW IQ, DUAL, 2-PHASE SYNCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 140V, package / case 48-LQFP Exposed Pad.

Datasheet Request a Quote

In Stock: 7,450

Tiered Pricing USD

1+ $17.1100 —

10+ $12.0260 -30%

25+ $10.7008 -37%

100+ $9.3500 -45% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 140V
Frequency - Switching	105kHz ~ 780kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Frequency Control, Soft Start
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount

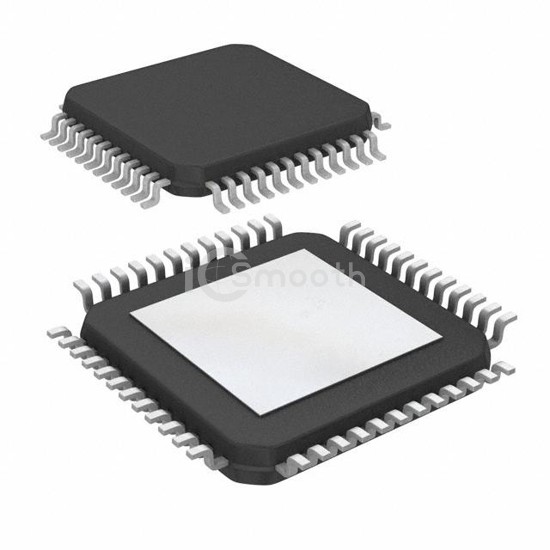

Package / Case	48-LQFP Exposed Pad
Supplier Device Package	48-eLQFP (7x7)
