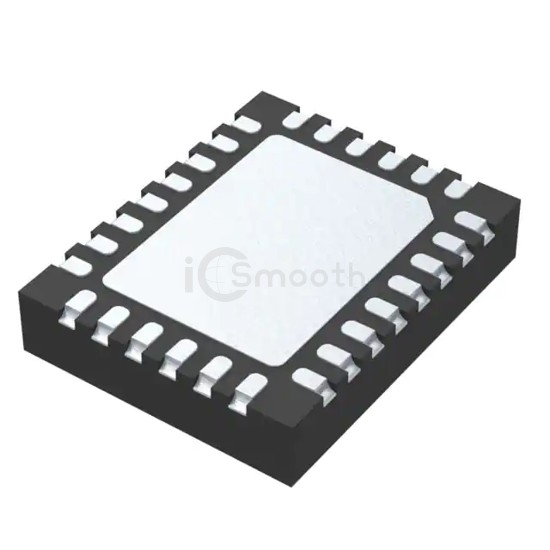

Name: LTC7802IUFDM#WPBF
Brand: Analog Devices Inc.
SKU: LTC7802IUFDM#WPBF
Price: 8.22 USD
Availability: InStock

REF: LTC7802IUFDM#WPBF Analog Devices Inc.

LTC7802IUFDM#WPBF

Analog Devices Inc.

40V, LOW IQ DUAL PHSE SYCH STP-D

LTC7802IUFDM#WPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. 40V, LOW IQ DUAL PHSE SYCH STP-D. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 40V, package / case 28-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,986

Tiered Pricing USD

1+ $8.2200 —

10+ $5.5100 -33%

73+ $4.1648 -49%

146+ $3.8349 -53%

292+ $3.5585 -57%

511+ $3.5125 -57% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	4.5V ~ 40V
Frequency - Switching	100kHz ~ 3MHz

Duty Cycle (Max)	99%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Enable, Frequency Control, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	28-WFQFN Exposed Pad
Supplier Device Package	28-QFN (4x5)
