Name: LTC7801HUFD#PBF
Brand: Analog Devices Inc.
SKU: LTC7801HUFD#PBF
Price: 14.71 USD
Availability: InStock

REF: LTC7801HUFD#PBF Analog Devices Inc.

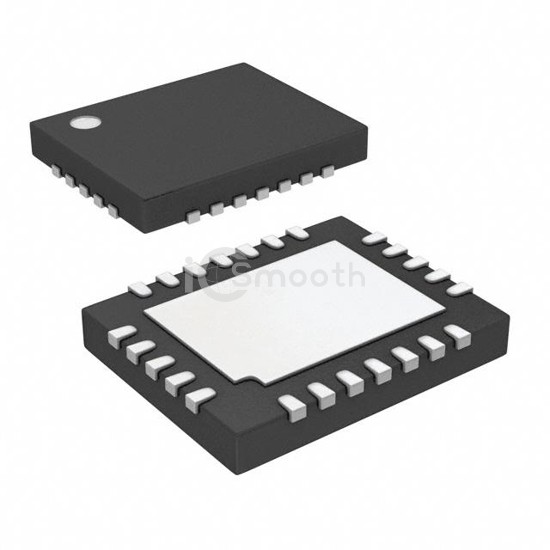

LTC7801HUFD#PBF

Analog Devices Inc.

IC REG CTRLR SYNC BUCK 24QFN

LTC7801HUFD#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR SYNC BUCK 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 4V ~ 140V, package / case 24-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,709

Tiered Pricing USD

1+ $14.7100 —

10+ $10.2370 -30%

73+ $8.0125 -46%

146+ $7.6625 -48% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 140V
Frequency - Switching	50kHz ~ 900kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-QFN (4x5)
