Name: LTC7801EUFD#TRPBF
Brand: Analog Devices Inc.
SKU: LTC7801EUFD#TRPBF
Price: 12.65 USD
Availability: InStock

REF: LTC7801EUFD#TRPBF Analog Devices Inc.

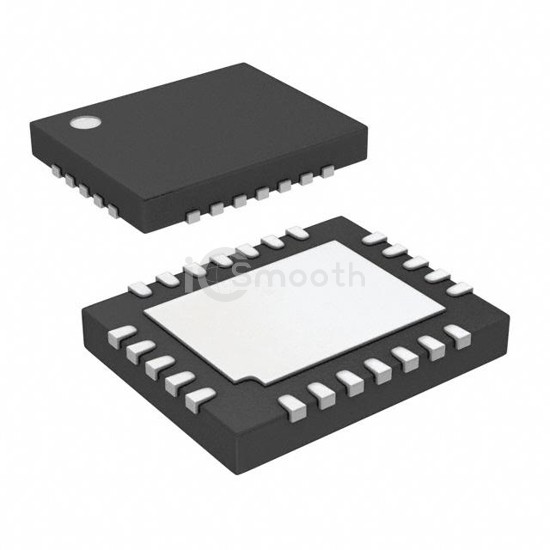

LTC7801EUFD#TRPBF

Analog Devices Inc.

IC REG CTRLR SYNC BUCK 24QFN

LTC7801EUFD#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR SYNC BUCK 24QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 140V, package / case 24-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,751

Tiered Pricing USD

1+ $12.6500 —

10+ $8.7200 -31%

25+ $7.6948 -39%

100+ $6.5357 -48%

250+ $6.2750 -50% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 140V
Frequency - Switching	50kHz ~ 900kHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-QFN (4x5)
