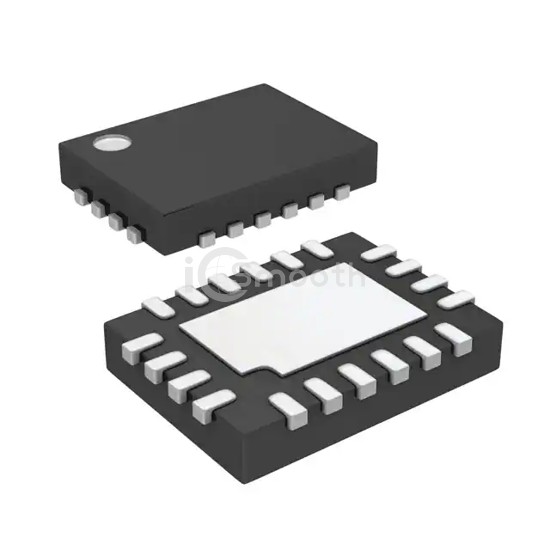

Name: LTC7800EUDC#PBF
Brand: Analog Devices Inc.
SKU: LTC7800EUDC#PBF
Price: 10.97 USD
Availability: InStock

REF: LTC7800EUDC#PBF Analog Devices Inc.

LTC7800EUDC#PBF

Analog Devices Inc.

IC REG CTRLR SYNC BUCK 60V 20QFN

LTC7800EUDC#PBF is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Analog Devices Inc.. IC REG CTRLR SYNC BUCK 60V 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4V ~ 60V, package / case 20-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,767

Tiered Pricing USD

1+ $10.9700 —

10+ $7.4930 -32%

91+ $5.6195 -49%

182+ $5.2185 -52%

273+ $5.1875 -53% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4V ~ 60V
Frequency - Switching	320kHz ~ 2.25MHz

Duty Cycle (Max)	98%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Power Good, Soft Start, Tracking
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Supplier Device Package	20-QFN (3x4)
