Name: LTC7545ABSW#PBF
Brand: Analog Devices Inc.
SKU: LTC7545ABSW#PBF
Price: 13.63 USD
Availability: InStock

REF: LTC7545ABSW#PBF Analog Devices Inc.

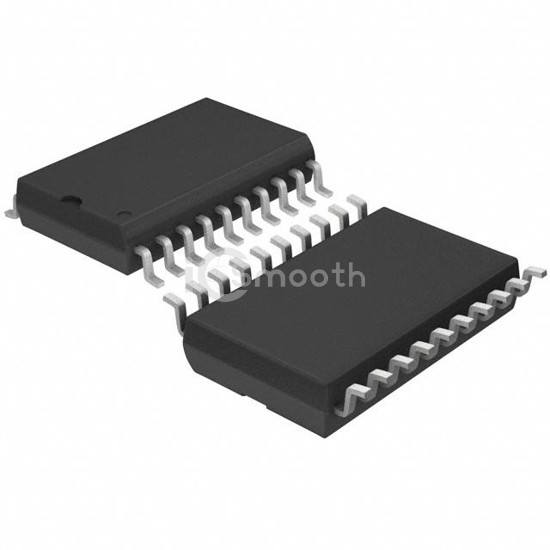

LTC7545ABSW#PBF

Analog Devices Inc.

IC DAC 12BIT A-OUT 20SOIC

LTC7545ABSW#PBF is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT A-OUT 20SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, 14.25V ~ 15.75V, package / case 20-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 99

Tiered Pricing USD

1+ $13.6300 —

10+ $9.4370 -31%

38+ $7.9240 -42%

114+ $7.0136 -49%

266+ $6.9250 -49% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	1
Settling Time	1µs
Output Type	Current - Unbuffered
Differential Output	No
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	5V, 14.25V ~ 15.75V
Voltage - Supply, Digital	5V, 14.25V ~ 15.75V
INL/DNL (LSB)	±0.5 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SO
Mounting Type	Surface Mount
