LTC7151SEV#TRPBF

In Stock: 4,826

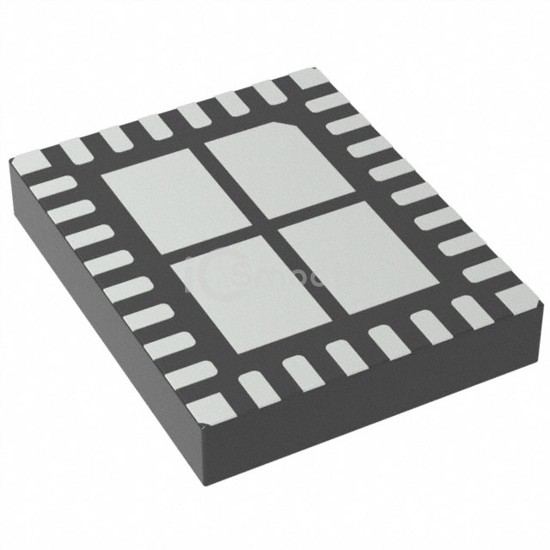

LTC7151SEV#TRPBF - Analog Devices Inc. - PMIC - Voltage Regulators - DC DC Switching Regulators
REF: LTC7151SEV#TRPBF Analog Devices Inc.
LTC7151SEV#TRPBF

Analog Devices Inc.

20V, 15A SYNCH MONOLITHIC BUCK C

LTC7151SEV#TRPBF is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. 20V, 15A SYNCH MONOLITHIC BUCK C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 28-VFQFN Exposed Pad, current - output 15A.

Datasheet Request a Quote

In Stock: 4,826

Tiered Pricing USD
1+ $11.5000 —
10+ $7.8780 -31%
25+ $6.9332 -40%
100+ $5.8656 -49%
250+ $5.5250 -52% BEST

Specifications

17 parameters
Product StatusActive
FunctionStep-Down
Output ConfigurationPositive
TopologyBuck
Output TypeAdjustable
Number of Outputs1
Voltage - Input (Min)3.1V
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)0.5V
Voltage - Output (Max)5.5V
Current - Output15A
Frequency - Switching400kHz ~ 3MHz
Synchronous RectifierYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case28-VFQFN Exposed Pad
Supplier Device Package28-LQFN (5x4)
