LTC7060JMSE#WPBF

In Stock: 7,802

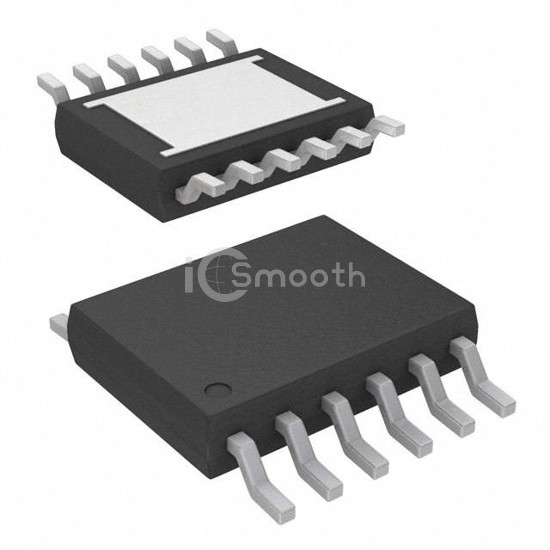

LTC7060JMSE#WPBF - Analog Devices Inc. - PMIC - Full, Half-Bridge Drivers
REF: LTC7060JMSE#WPBF Analog Devices Inc.
LTC7060JMSE#WPBF

Analog Devices Inc.

100V HALF BRIDGE DRIVER W/ FLOAT

LTC7060JMSE#WPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc.. 100V HALF BRIDGE DRIVER W/ FLOAT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 14V, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,802

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsGeneral Purpose
InterfacePWM
Load TypeCapacitive
TechnologyPower MOSFET
Rds On (Typ)1.5Ohm LS, 1.5mOhm HS
Current - Output / Channel-
Current - Peak Output6A
Voltage - Supply6V ~ 14V
Voltage - Load6V ~ 14V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package12-MSOP-EP
