LTC7060IMSE#WPBF

In Stock: 6,271

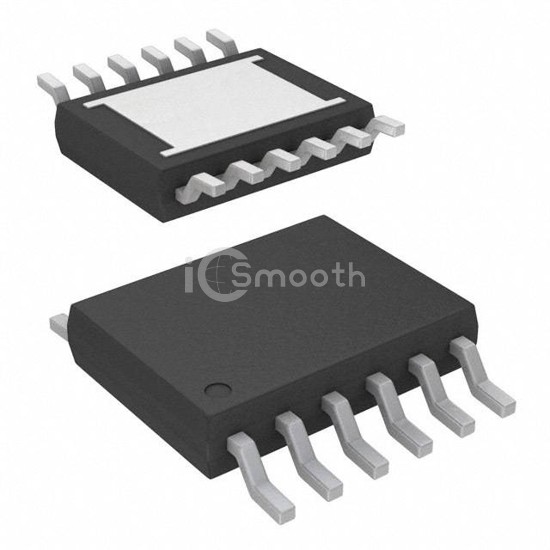

LTC7060IMSE#WPBF - Analog Devices Inc. - PMIC - Full, Half-Bridge Drivers
REF: LTC7060IMSE#WPBF Analog Devices Inc.
LTC7060IMSE#WPBF

Analog Devices Inc.

100V HALF BRIDGE DRIVER W/ FLOAT

LTC7060IMSE#WPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc.. 100V HALF BRIDGE DRIVER W/ FLOAT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 14V, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,271

Tiered Pricing USD
1+ $5.4200 —
10+ $3.5460 -35%
37+ $2.8814 -47%
111+ $2.4714 -54%
259+ $2.2252 -59%
518+ $2.0598 -62%
1,036+ $1.9875 -63% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsGeneral Purpose
InterfaceLogic, PWM, SPI
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)1.5Ohm LS, 1.5Ohm HS
Current - Output / Channel6A
Current - Peak Output6A
Voltage - Supply6V ~ 14V
Voltage - Load6V ~ 14V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package12-MSOP-EP
