LTC7060EMSE#WTRPBF

In Stock: 7,784

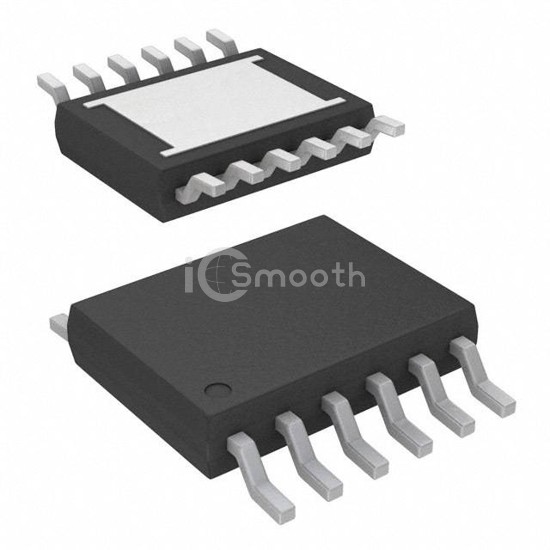

LTC7060EMSE#WTRPBF - Analog Devices Inc. - PMIC - Full, Half-Bridge Drivers
REF: LTC7060EMSE#WTRPBF Analog Devices Inc.
LTC7060EMSE#WTRPBF

Analog Devices Inc.

100V HALF BRIDGE DRIVER

LTC7060EMSE#WTRPBF is a PMIC - Full, Half-Bridge Drivers manufactured by Analog Devices Inc.. 100V HALF BRIDGE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 6V ~ 14V, package / case 12-TSSOP (0.118", 3.00mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,784

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsGeneral Purpose
InterfacePWM
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)800mOhm LS, 1.5Ohm HS
Current - Output / Channel6A
Current - Peak Output6A
Voltage - Supply6V ~ 14V
Voltage - Load6V ~ 14V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionShoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package12-MSOP-EP
